New BauderPIR Angle Fillets
Bauder will be launching a new version of our PIR Angle Fillet.
As part of Bauder’s review of our product range, we are pleased to introduce a new faced PIR angle fillet.
The product will be named: BauderPIR M TKL 60
Benefits of the new PIR angle fillet
- Glass mineral fleece for improved adhesion of membrane
- Trapezoidal in shape enables improved fittng into 90 degree angles
- Length increased from 1000mm to 1200mm
- Box size reduced from 288 linear metres to 194.4 linear metres
What size and length will the angle fillets be available in?

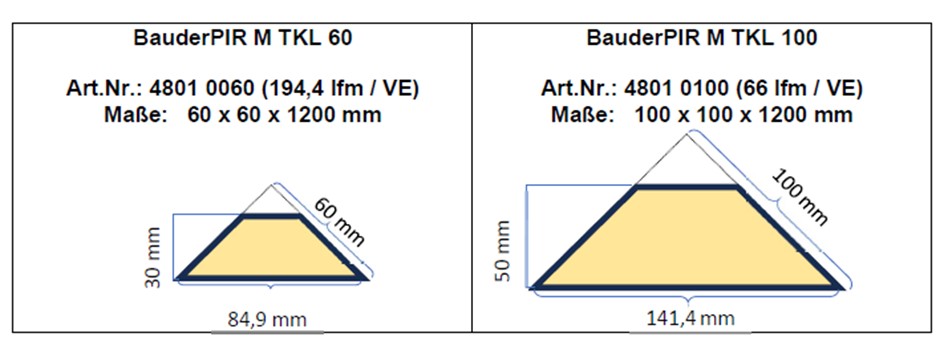

The fillets will be trapezoidal in shape 60mm x 60mm from corner to mid-point, 84.9mm across the diagonal, and 1200mm in length.
What about the current angle fillet?
With the introduction of the new style angle fillet, the current angle fillet will be phased out. Once our stocks of the old fillet are gone, you will need to purchase the new one.
Pricing
There is an uplift in cost of £0.18 per linear metre for the new fillet compared to the old fillet. The new angle fillet will be added to the next version of the bitumen price list.
Where the old fillet has been specified and the project has a quote still within its validity, we will honour the quoted price for deliveries up to 1st August 2025. After this date new rates will apply to all deliveries.
Can you mix and match the old trim and new trim?
Yes. You can use on the same roof area but not on the same linear plane as the profile is slightly different.
Packaging
The product will be delivered in a cardboard box (readily recyclable) containing 194.4 linear metres of angle fillet (162 lengths). Boxes will not be split into smaller quantities — full boxes only.
Stock & Lead times
Lead times on orders are approx. 2 to 3 working days.
Technical Data Sheet
The Technical Data Sheet is at the bottom of this page
Specifications & Drawings
The specification clauses have been updated and specifications using the new angle fillets will start to appear soon.
The detail drawings will not be changed as the naming is generic to angle fillets and the detailing remains the same.
Installation guidance
There is no change to the installation instructions — please refer to the Technical Data sheet and latest project specification document.
Health & Safety
Information regarding handling, storage and disposal of this product can be found on the latest version of the Technical Data Sheet, which should be consulted before use.
If you have any questions, please do not hesitate to contact me.
Richard Clennell
Product Manager—RBM & Insulation
M: 07824 539684
