Hot Melt roof systems
Bauder hot melt waterproofing systems are designed for use in inverted or buried roof scenarios.

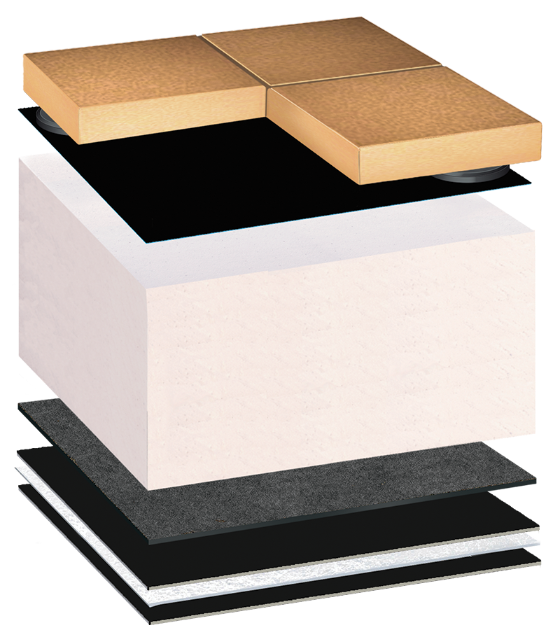

Hot Melt system
Monolithic, fully bonded installation for cold or inverted constructions.
Hot Melt system
In-depth and up-to-date product-specific technical data is available for each element within a system.
- Cold Roof - Paved
- Paved with JFRIPREMIUM+ Inverted Insulation
- Paved with BauderGLAS Inverted Insulation
- Ballasted with JFRIPREMIUM+ Inverted Insulation
- Ballasted with BauderGLAS Inverted Insulation
- Extensive with JFRIPREMIUM+ Inverted Insulation
- Extensive with BauderGLAS Inverted Insulation
- Biodiverse with JFRIPREMIUM+ Inverted Insulation
- Intensive with JFRIPREMIUM+ Inverted Insulation
Function
Water Flow Reducing Layer (WFRL)
Hot Melt system with Bauder VIP INV
BauderVIP INV is an inverted roof rigid vacuum insulation panel with a microporous core that is evacuated, encased, and sealed in a gas-tight membrane. BauderVIP INV panels are encapsulated in a protective polyurea coating for increased robustness and easier handling on site.
BauderVIP INV panels are suitable for roof areas where a lack of construction depth or space is an issue, such as roofs, roof terraces, enclosed balconies over heated spaces, and insulated walkways in an inverted roof build-up. BauderVIP INV panels are suitable for use in both new build and refurbishment situations with our hot melt, reinforced bitumen membrane and Bauder LiquiTEC cold applied liquid waterproofing options.
BauderVIP INV panels can be used as part of an inverted roof construction in either a single or double layer which is determined by the thermal requirements of the project. They are used in conjunction with BauderXPS (300) on top of the BauderVIP INV panels and as infill boards for any spaces. Its thickness is also determined by the thermal requirements.
BauderVIP INV panels can be used in conjunction with BauderXPS, BauderROCK NC 56mm Upstand Insulation, and warm insulation upstands - giving the designer flexibility.

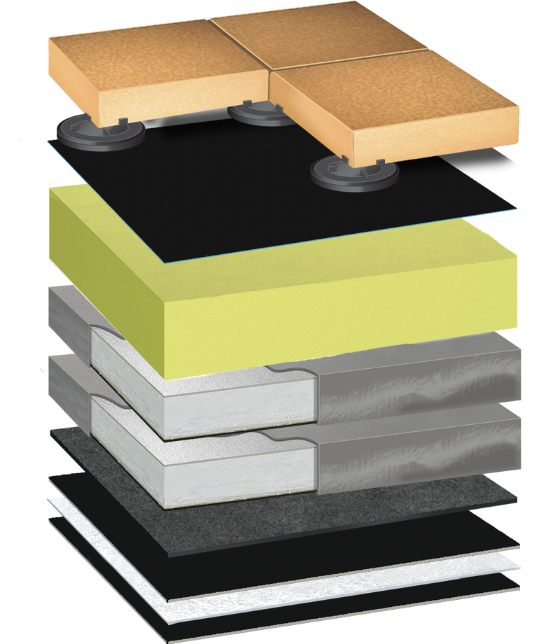

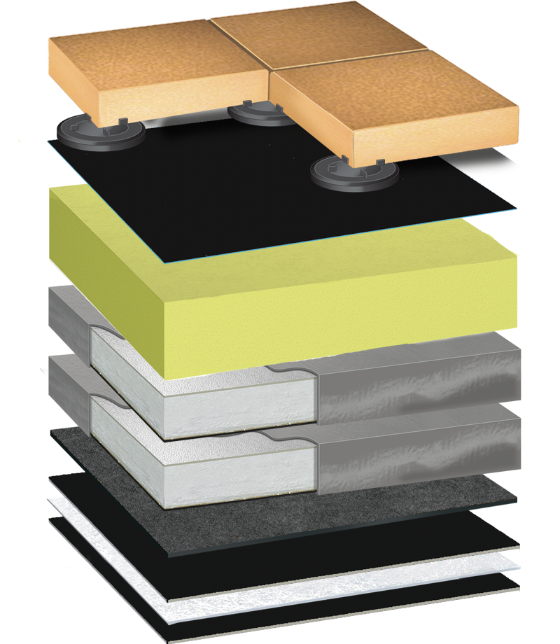

Hot Melt system with VIP INV
Hot liquid applied waterproofing system for use in Inverted and Cold Roof situations. Suitable in both new build and refurbishment situations. Can be used on various substrates and is ideal as a waterproofing beneath paved, ballasted, green, blue and brown and biosolar roof situations.
Download system summaries:
Function
Paving
Flame-free detailing methods
Our flame-free detail design specifically delivers secure safe application techniques in the vicinity of combustible construction materials located on or connected to, the roof. This includes timber substrates or upstands; abutments to cladding, roof tiles, slates or thatch; or even debris such as dry leaf material that is at risk of ignition.
Useful downloads
Contact us today about your project
Each project is unique in its requirements, but we have case studies and examples of our work available to help guide you. If you are looking for a hot melt system for a new build project, then get in touch with our team to discuss your project’s individual needs.
