BauderBLUE SR-HM

Green and blue roofs products

A bespoke blue roof flow restrictor for vertical hot melt outlets.

Application

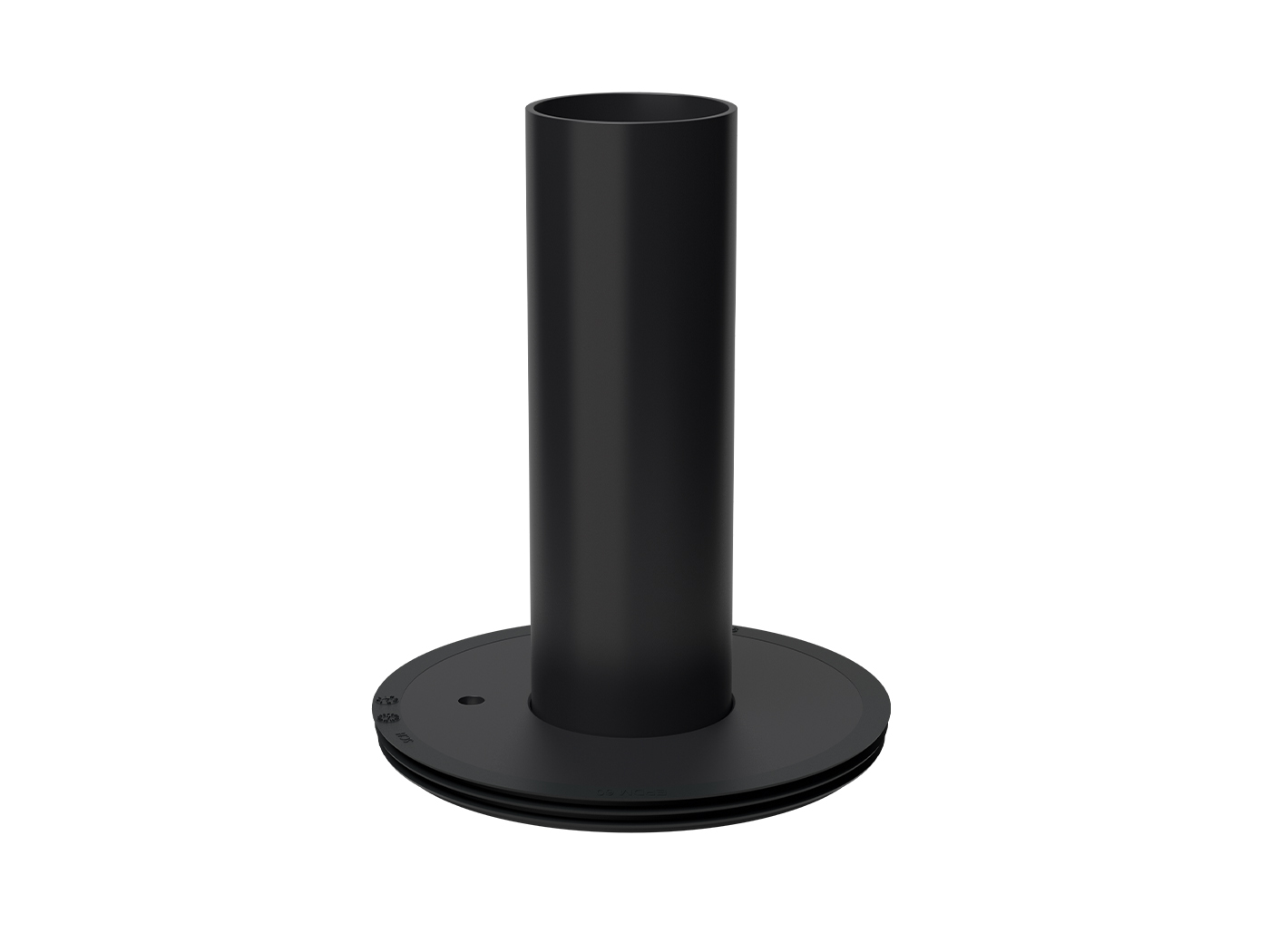

The BauderBLUE SR-HM flow restrictor is designed to be fitted into a Bauder hot melt 70mm vertical outlet, to control the discharge rate for a blue roof. The product consists of 4 parts (baseplate, overflow pipe and two EPDM seals). The number of drain holes and the height of the overflow are dictated by Bauder’s individual blue roof calculations.

Product details

Characteristic	Unit	Value
Base plate material		Polyamide
Base plate diameter	mm	133 (excluding outer seal)
Baseplate height	mm	30
Overflow diameter	mm	75 outer, 69 inner
Overflow pipe height	mm	250 (cut down to H-Max)
