BauderPVC VBL 14

Single ply products

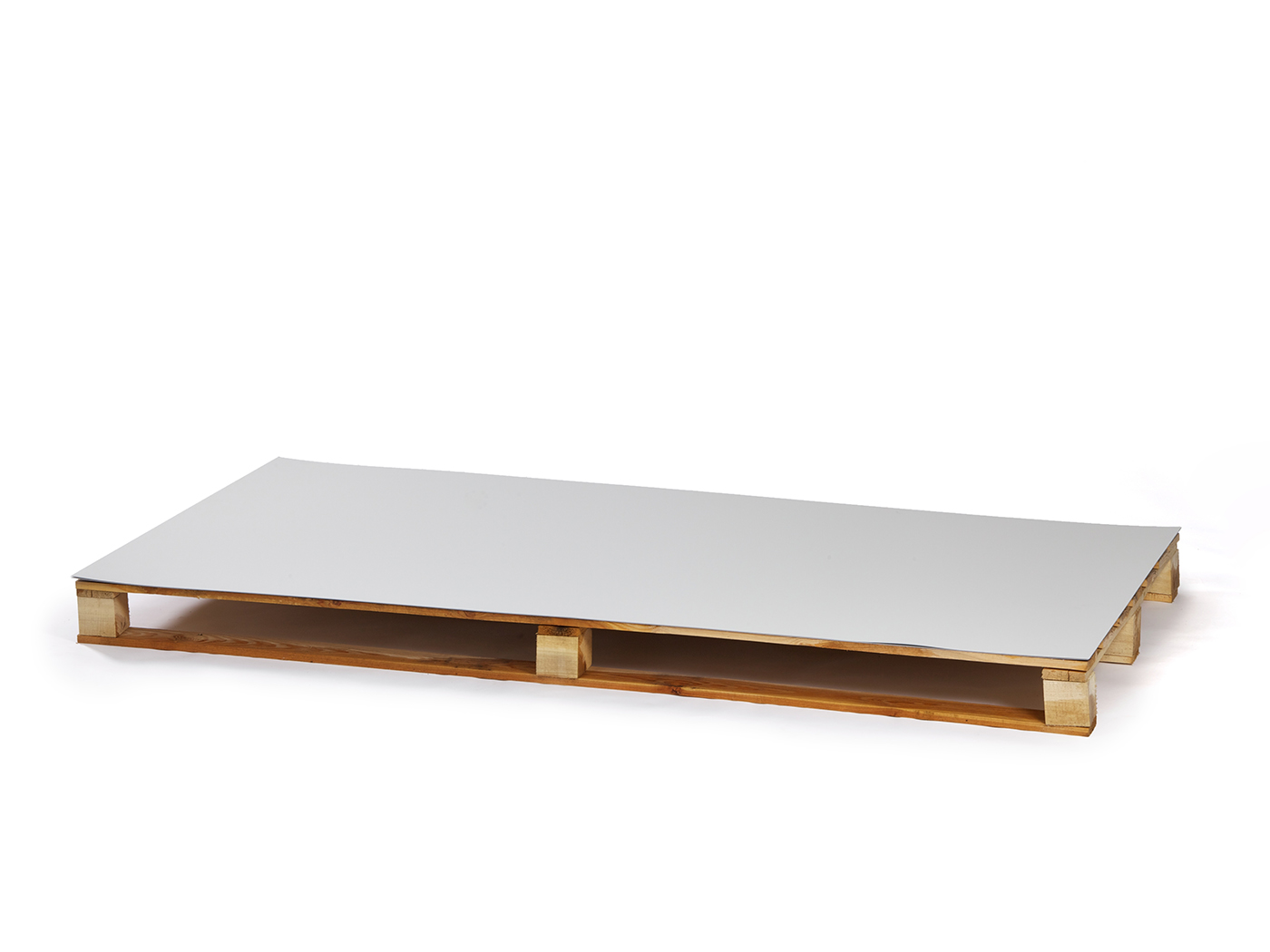

Bauder PVC coated metal sheet is a galvanised and synthetic pre-coated steel sheet, an accessory within the Bauder Thermofol single ply systems.

The product is laminated on one side with a 0.8 mm thick layer of Thermofol PVC, for use in creating flashings and detailing.

Characteristic	Unit	Value
Surface		Zinc-plated sheet steel, painted on bottom, PVC-P on top
Reinforcement type and weight		Variable (refer to data sheet)
Length	m	2.0
Width	m	1.0
Overall Thickness	mm	Variable (refer to data sheet)
Mass per unit area	kg/m²	5
