BauderGLAS Inverted Insulation

Inverted Insulation

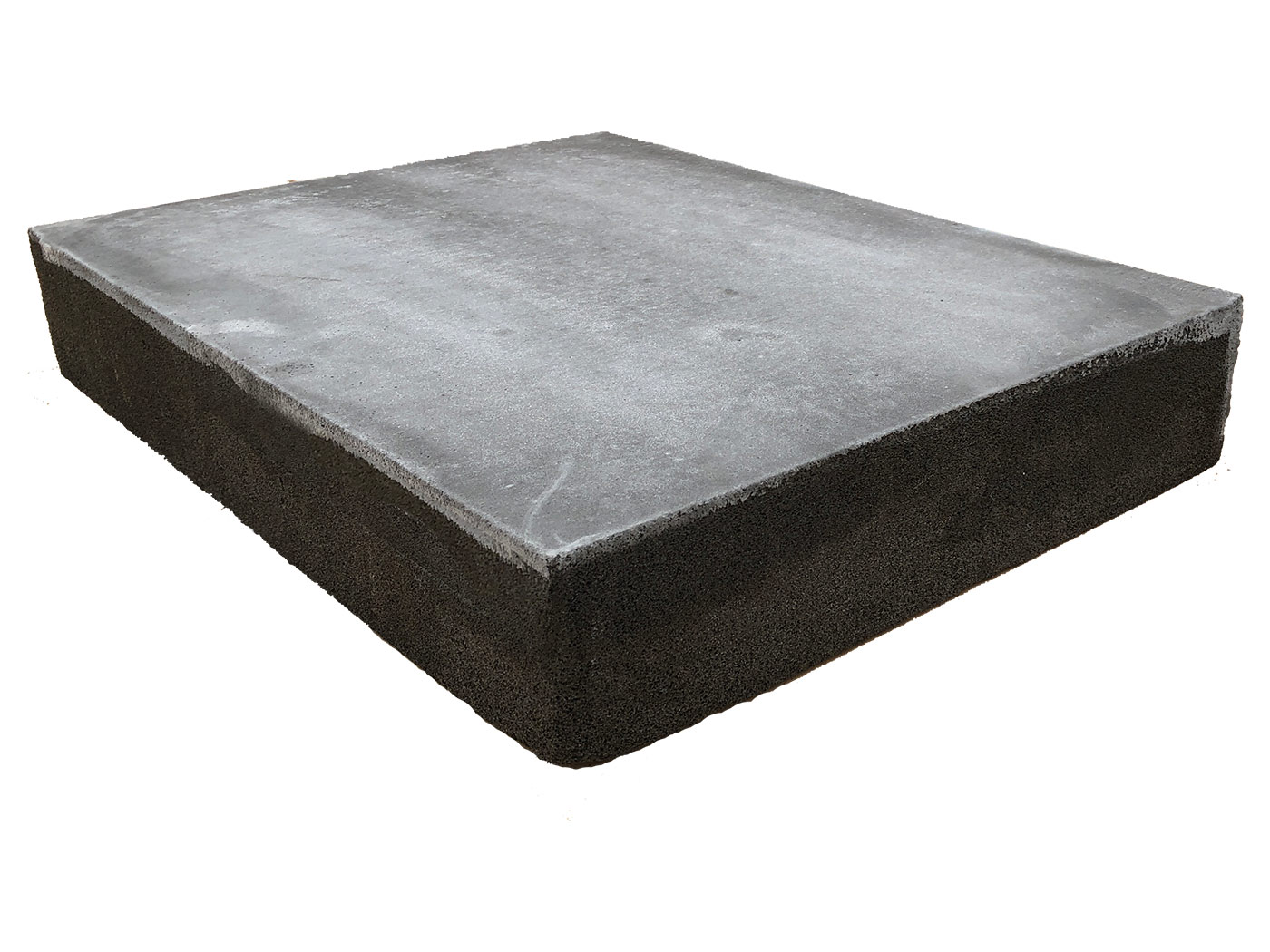

Cellular glass with a pre-applied inorganic coating on the topside. Both the core material and the coating have an A1 reaction to fire classification and are therefore non-combustible.  Where more than one layer of insulation is required, BauderGLAS Slab T3+ will be used as the base layer.

This product is for use within inverted (protected membrane) roof systems and can be laid directly onto Bauder Hot Melt and Bauder Reinforced Bitumen Membranes.

Use in conjunction with BauderJFRI WFRL prior to installing paving, decking, ballast or lightweight green or brown roofs.

Use in conjunction with BauderGLAS Upstand boards to exposed vertical upstands.


Product details

CharacteristicTest MethodUnitValue
FacingCellular glass with a pre-applied inorganic coating on the topside.
Length ± 2mm EN 822 mm600
Width ± 2mm EN 822 mm450
Thickness ± 2mmEN 823mm100, 120*, 140, 160, 180* & 200 *made to order, min qty 100 m

All further technical information is stated on the data sheet below.

This product does not require a Declaration of Performance (DoP).
