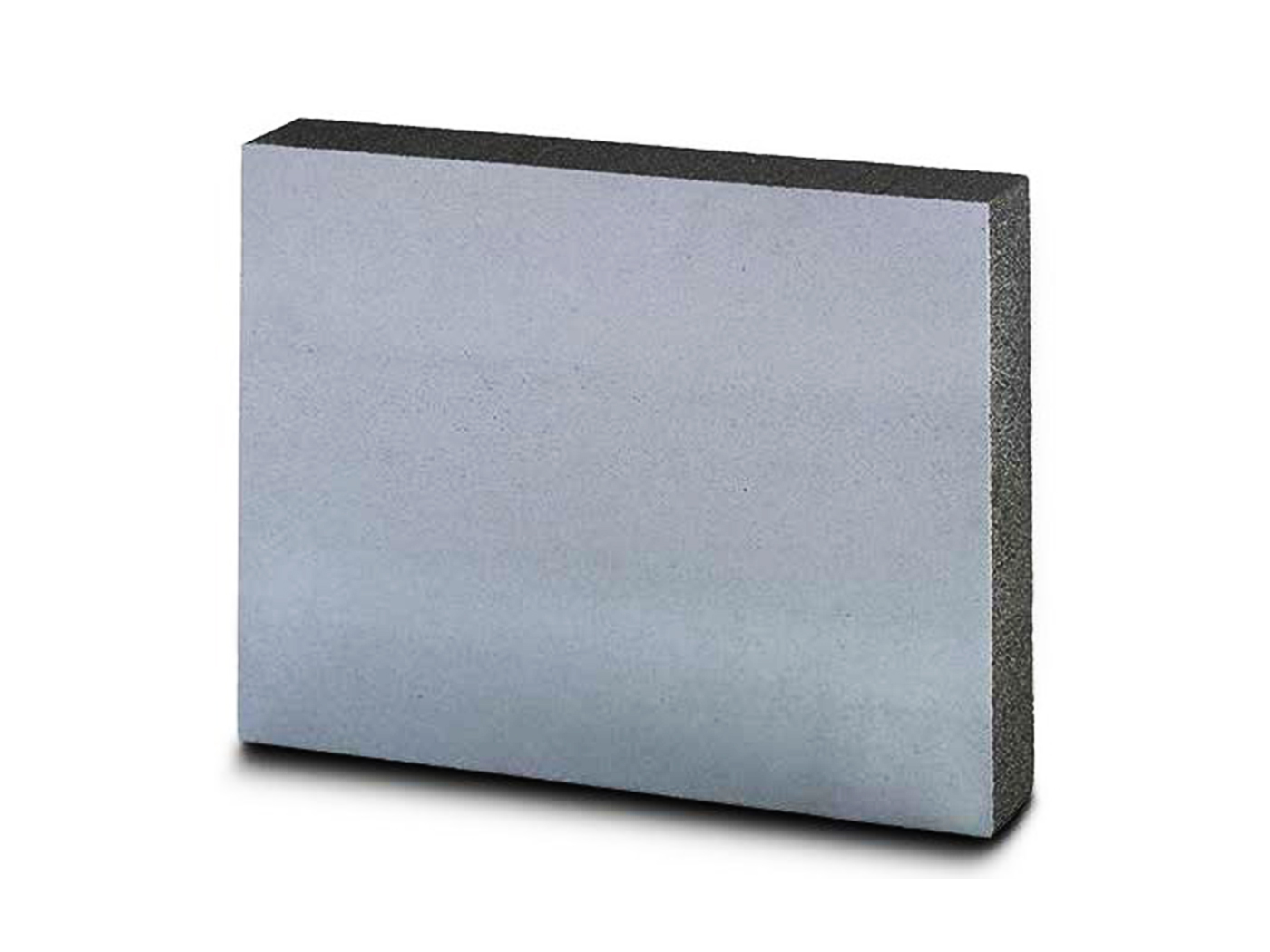

BauderGLAS Inverted Upstand Insulation

Inverted Insulation

Cellular Glass with a pre-applied inorganic coating on the topside. Both the core material and the coating have an A1 rated reaction to fire classification and are therefore non-combustible.

Provides an impact and weather resistant non-combustible thermal insulation for use on low level inverted roof upstands, including to and across compartment walls. This product is specifically for use at upstands where BauderGLAS Inverted Insulation is used on the main flat area.


Product details

CharacteristicTest MethodUnitValue
FacingPre-applied inorganic coating
Length ± 2mm EN 822mm600
Width ± 2mm EN 822mm450
Thickness ± 2mm EN 823mm50

All further technical information is stated on the data sheet below.

This product does not require a Declaration of Performance (DoP).
