BauderPIR FA

Flatboard Insulation

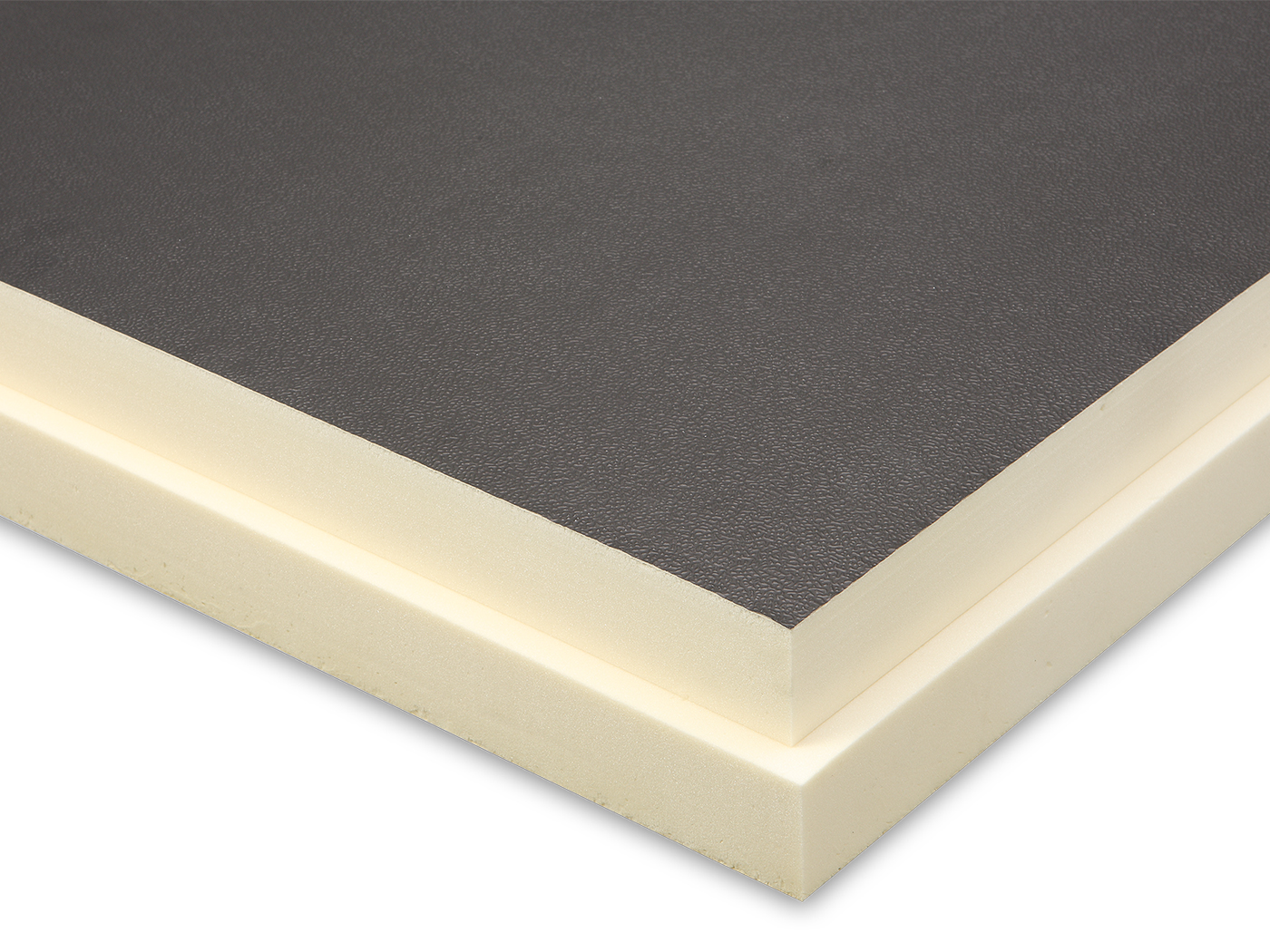

Rigid polyurethane foam board faced on both sides with aluminium foil.

Application fields
Thermal insulation with a low thermal conductivity for use within Bauder warm roof single-ply waterproofing systems to provide efficient thermal insulation.

Product Information

Facing

Top: Aluminium foil
Bottom: Aluminium foil

Board edge

Rebated edges

Product details

CharacteristicTest MethodUnitValue
External dimension (L x W)EN 822mm2,400 x 1,200
Installation dimension (including 15mm rebate)EN 822mm2,385 x 1,185
ThicknessEN 823mm60, 80, 100, 120, 140, 160, 180, 200

Note on non-standard thicknesses
Thicknesses of 40, 50, 200, 220, and 240mm available as a special order with minimum order quantity of 1,000 m².

All further technical information is stated on the data sheet below.
