BauderPIR FA-TE

Flatboard Insulation

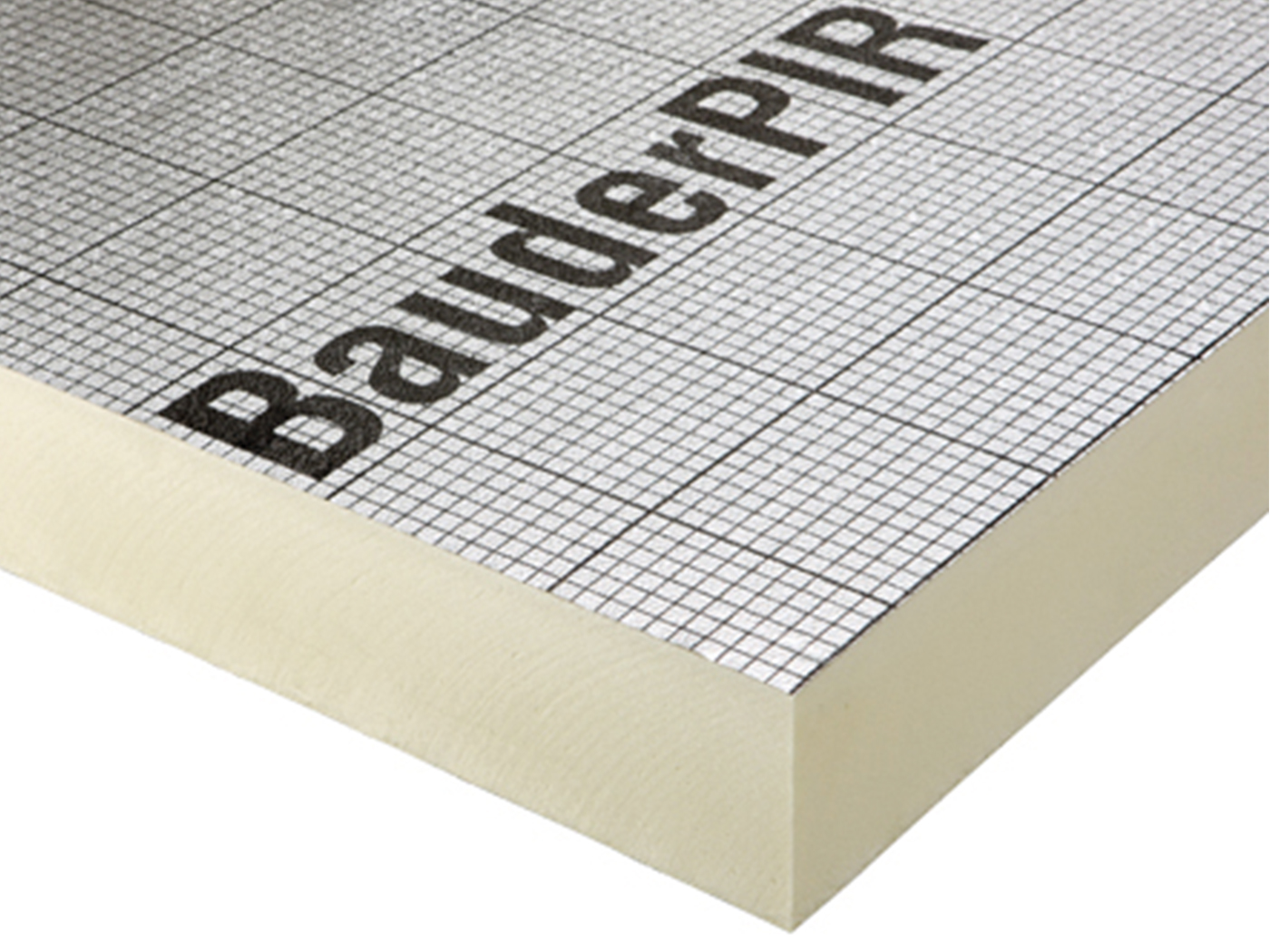

Rigid polyurethane foam board faced on both sides with aluminium foil. The top facing features a printed grid pattern to aid cutting on site.

Facing

Top: Aluminium foil
Bottom: Aluminium foil

Board edge

Square (not rebated)

Characteristic	Test Method	Unit	Value
External dimension (L x W)	EN 822	mm	1,200 x 600
Thickness	EN 823	mm	Thickness 20, 30, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 220, 240*

(*) Thicknesses of 20, 180, 200, 220, & 240 mm are available as a special order with a minimum order quantity of 1,000 m².

All further technical information is stated on the data sheet below.
