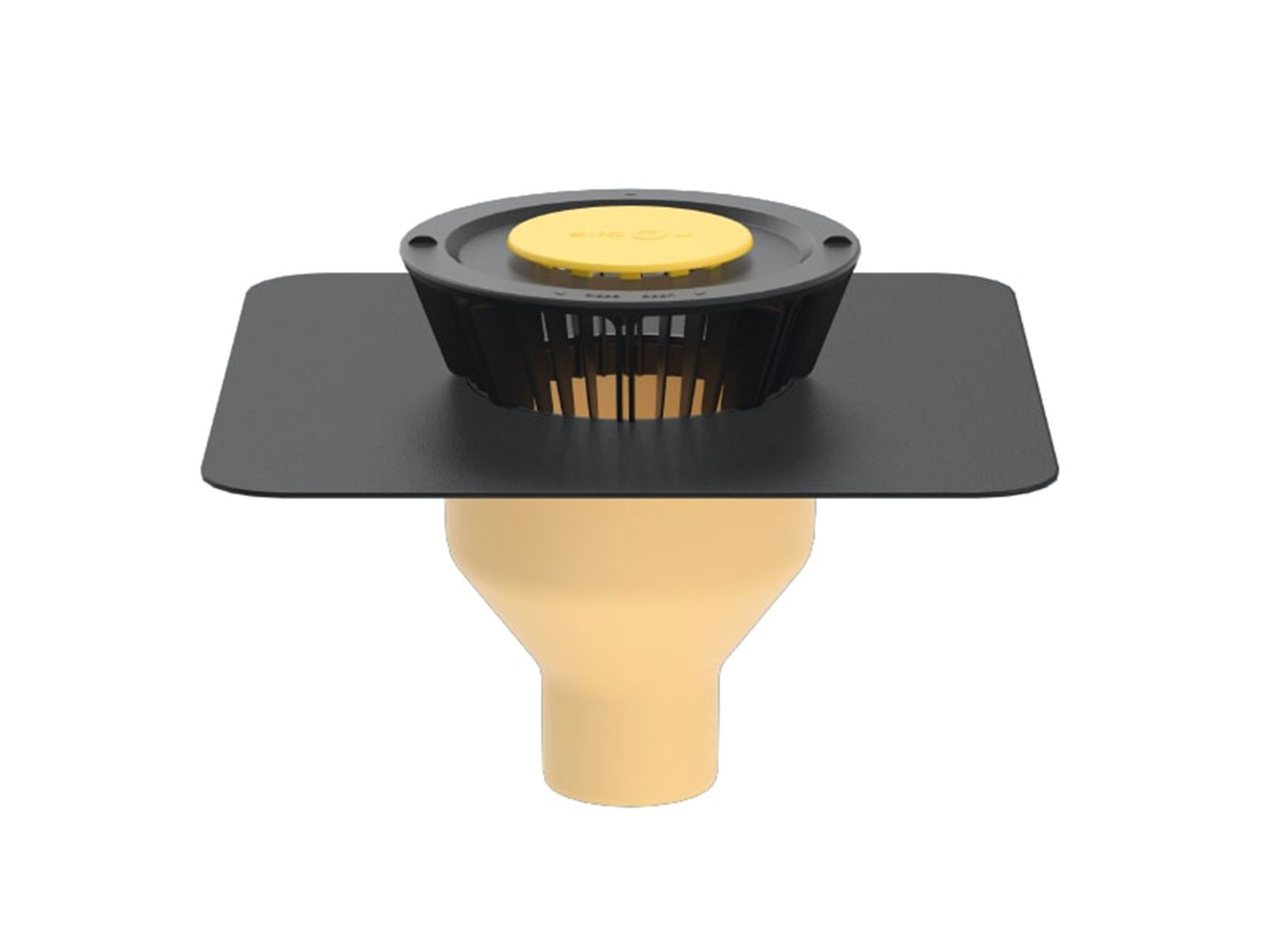

Bauder Bitumen Compact Vertical Outlet DN 100

A thermally insulated cast polyurethane rainwater outlet with a vertical spigot giving thermal continuity. The outlet comes with a pre-attached bituminous flange to ensure waterproofing integrity between the outlet and membranes. The BRE Certified (report no. HPR357-303748) high thermal value of the rigid foam body prevents condensation from forming on the underside of the outlet body.

Outlet has a flow rate of 6.1 litres/sec based upon requirements of  BS EN 12056:3:2000.

For use with Bauder bituminous waterproofing membranes when connecting to conventional gravity drainage systems. The product is designed to be used in warm, cold, and inverted roof scenarios. The spigot is designed to fit a standard 110 mm pipework (see pipework connectivity information in the Technical Data Sheet below). Where a warm roof system is specified, a separate extension piece will need to be ordered to maintain thermal integrity. This is available with a spigot length that can range from 60mm to 220mm according to the insulation thickness specified. A separate 60mm thick extension unit housing can also be ordered to accommodate the extension piece to save having to cut insulation on site to suit.
