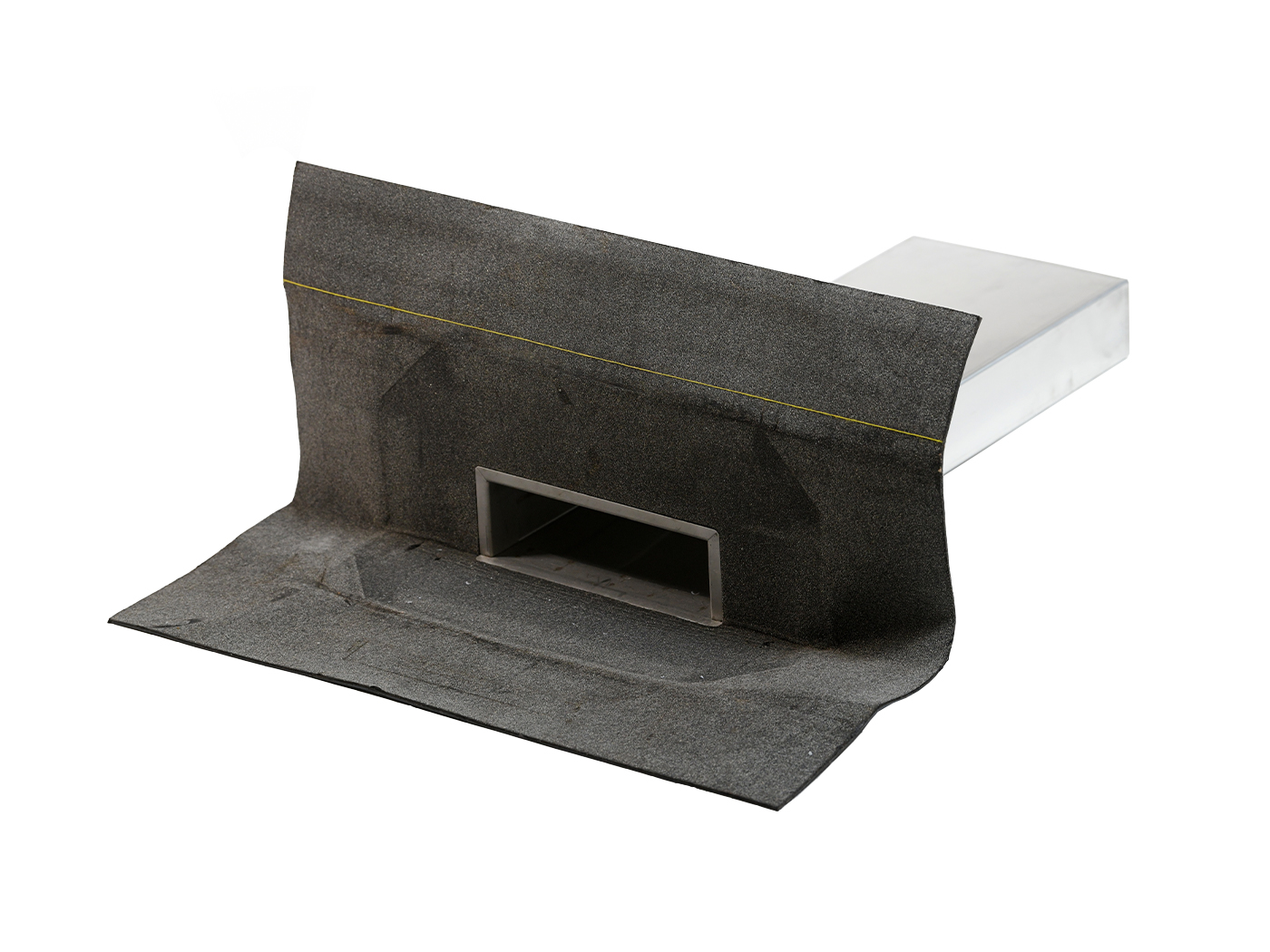

Bauder Bitumen Letterbox Parapet Outlet DN205

Accessories

A high drainage capacity stainless steel bitumen letterbox parapet outlet for horizontal roof drainage systems. Factory-bonded membrane flange attached to the outlet allows for ease of installation.

For use with Bauder bituminous waterproofing membranes when used as a through chute in walls or parapets to external drainage via a hopper head and downpipe. The product is designed to be used in warm, cold, and inverted roof scenarios. To be used in conjunction with the letterbox parapet outlet leaf guard.

Product details

Characteristic	Unit	Value
Base plate	mm	415 (width) x 175 (vertical) x 100 (horizontal)
Aperture	mm	205 (width) x 65 (height)
External diameter of spigot	mm	210 (width) x 70 (height)
Bitumen membrane flange	mm	610 width x 280 vertical x 210 horizontal
Stainless steel spigot length	mm	600
Weight	kg	4.44 (4.75 kg including leaf guard)
