Bauder Bitumen Parapet Outlet DN 100 including stainless steel leaf guard

Bauder Bitumen Parapet Outlet DN 100 including stainless steel leaf guard

Accessories

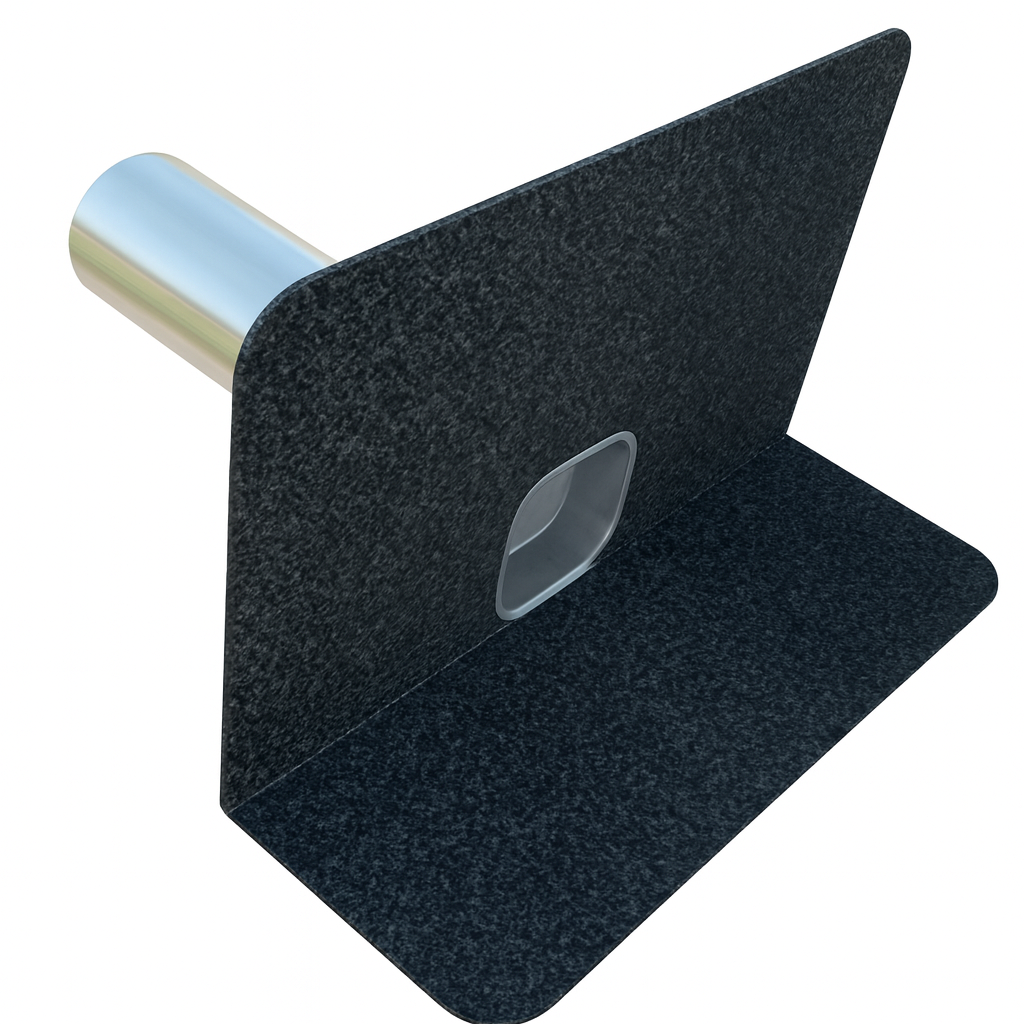

A stainless-steel bitumen parapet outlet for roof drainage systems. Factory bonded membrane flange attached to the outlet allows for ease of installation.

For use with Bauder bituminous waterproofing membranes when used through walls or parapets to external drainage via a hopper head and/or downpipe. The product is designed to be used in warm, cold, and inverted roof scenarios. To be used in conjunction with the parapet outlet leaf guard.

Product details

Characteristic	Test Method	Unit	Value
Base plate	N/A	mm	230 (width) x 175 (vertical) x 70 (horizontal)
Aperture	N/A	mm	100
External diameter of spigot	N/A	mm	110
Bitumen membrane flange	N/A	mm	430 (width) x 280 (vertical) x 180 (horizontal)
Stainless steel spigot length	N/A	mm	600
Weight	N/A	kg	2.53 (2.80 including leaf guard)
Membrane colour	N/A	N/A	Black
Membrane finish	N/A	N/A	Sanded
Angle of spigot	N/A	°	0
